Stationary Hydraulic Dock Leveler

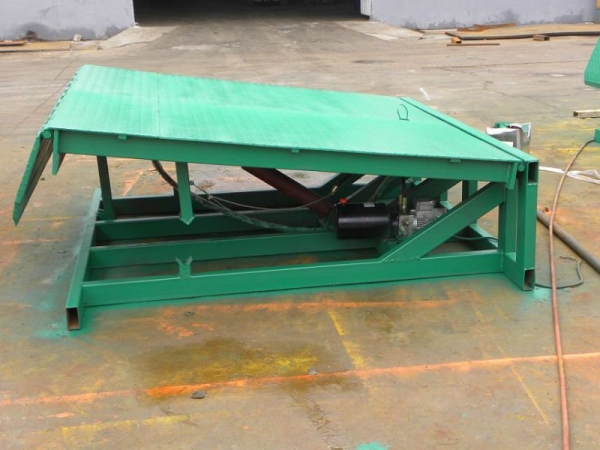

Stationary Hydraulic Dock Leveler
Introduction
a. Hydraulic dock ramp is the auxiliary equipment for cargo loading and lifting.
b. It is widely used in warehouse, station, wharf, warehousing logistics base, postal transportation, logistics distribution, etc.
c. Convenient push button activation and first-class hydraulic technology increase the efficiency and safety of the loading/discharging jobs.
d. It is classified to five kinds by carrying –weight capacity, such as 6T, 8T, 10T, 12T, 15T,etc.
Standard Parameters (Custom-made)
|
Model |
Load (T) |
Platform size (mm) |
Lip (mm) |
Travel Upper Lower |
Power (Kw) |

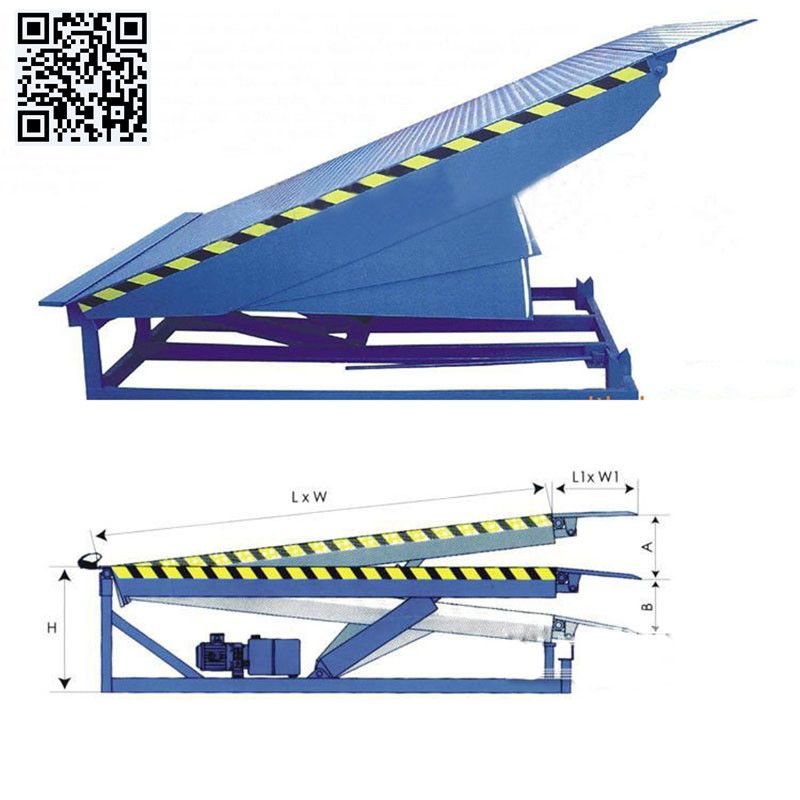

Pit Size (mm) L W H |
|||
|
DCQ-6 |
6 |
2000*2000 |
400 |
300 |
250 |
0.75 |
2080 |
2040 |
600 |
|
DCQ-8 |
8 |
2000*2000 |
400 |
300 |
250 |
0.75 |
2080 |
2040 |
600 |
|
DCQ-10 |
10 |
2000*2000 |
400 |
300 |
250 |
0.75 |
2080 |
2040 |
600 |
|
DCQ-12 |
12 |
2000*2000 |
400 |
300 |
250 |
0.75 |
2080 |
2040 |
600 |
