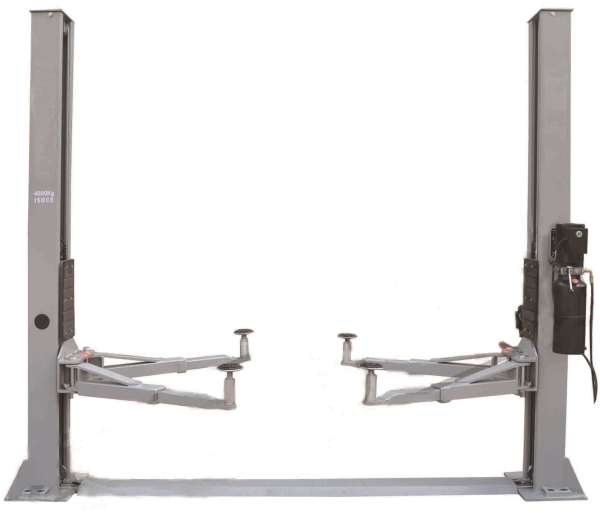

3.5T 4T floor plate 2 post car lift/Two column car lift for garage
3.5T 4T floor plate 2 post car lift/Two column car lift for garage
Advantages
1.Floor plate style design, more suitable for low ceiling workshop.
2.Multi-lateral shape column to guarantee the safety and stability.
3.Complete steel welding performance,make the duck arm supporting point more strong.
4.Symmetric arms dabber welding make more stable.
5.Adopt quality pack power,more endurable,running safely and reliably.
6.Strip design,elegant appearance.
7.Dynamic test:115% of the rated capacity. static test:150% of the rated capacity.
8.Dual anti-skidding safety device from column ladder safety to hydraulic seal protection to ensure double safe on the staying of the vehicle special hydraulic design to avoid overload running.
9.Comply with the European Union CE safety standards.
|
Model |
SP-A3500 |
SP-B4000 |
SP-C4000 |
|
Lifting weight |
3500kg |
4000kg |
4000kg |
|
Lifting height |
1700mm |
1700mm |
1700mm |
|
Minimum height |
110mm |
110mm |
110mm |
|
Column height |
2835mm |
2835mm |
2835mm |
|
Width between columns |
2800mm |
2800mm |
2800mm |
|
Installation width |
3450mm |
3520mm |
3550mm |
|
Lifting time |
60s |
60s |
60s |
|
Falling time |
50s |
50s |
50s |
|
Motor power |
2.2kw |
2.2kw |
2.2kw |
|
Power voltage |
220V/240V/380V/415V |
||
