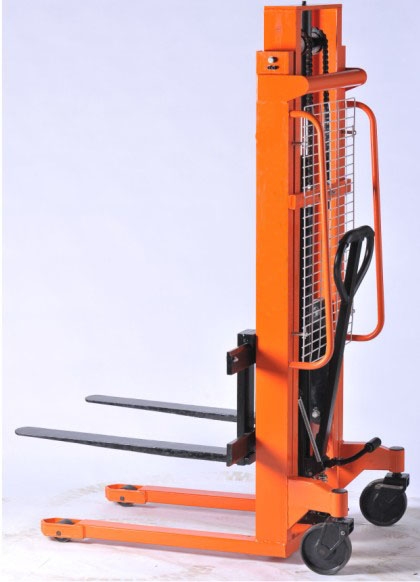

Hand pallet stacker/Manual forklift
1. Optional coating materials like PU, Nylon, and Rubber etc. For rollers and wheels meet different needs of customer and working ground and conditions.
2. Unique design of pump makes it easier to operate and repair.
3. Excellent performance and highly reliable.
4. Important seals made in Germany, which prolong the working time of hydraulic unit5. No routine maintenance at all is needed on the hydraulics unit and bearings.
6. Professional and ideal for storage and transport tasks.
7. Optional quick lift function, only 5 pump actions needed to reach the maximum
height, which makes more efficient and labor saving.
8. Key parts galvanized ensures long services life, stability as well as low noise.
|
Product name |
Hand Pallet Stacker |
||||
|
Model |
CTY-0.5 |
CTY-1 |
CTY-1.5 |
CTY-2 |
CTY-3 |
|
Load capacity(kg) |
500 |
1000 |
1500 |
2000 |
3000 |
|
Lift height(mm) |
1600 |
1600 |
1600 |
1600 |
1600 |
|
Minimum height(mm) |
<=100 |
<=100 |
<=100 |
<=105 |
<=105 |
|
Length of fork(mm) |
800 |
800 |
800 |
800 |
800 |
|
Fork adjust range(mm) |
160-480 |
200-580 |
260-580 |
260-580 |
300-580 |
|
Outside width of leg(mm) |
620 |
730 |
730 |
730 |
740 |
|
Inside width of leg(mm) |
480 |
580 |
580 |
580 |
580 |
|
Lift speed(mm/time) |
≈20 |
≈20 |
≈15 |
≈10 |
≈10 |
|
Down speed |
adjustable |
adjustable |
adjustable |
adjustable |
adjustable |
|
Turning radius(mm) |
<=1450 |
<=1500 |
<=1500 |
<=1500 |
<=1500 |
|
Cylinder diameter(mm) |
Φ30 |
Φ40 |
Φ45 |
||
|
Front Wheel diameter(mm) |
Φ90*50 (Nylon plastic) |
||||
|
Back Wheel diameter(mm) |
Φ180*50 (Nylon plastic) |
||||
|
Total dimension(mm) |
1280*620*1940 |
1280*730*1950 |
1280*730*1960 |
1280*740*1970 |
1280*740*1970 |
|
Total weight(kg) |
100 |
125 |
145 |
170 |
200 |
