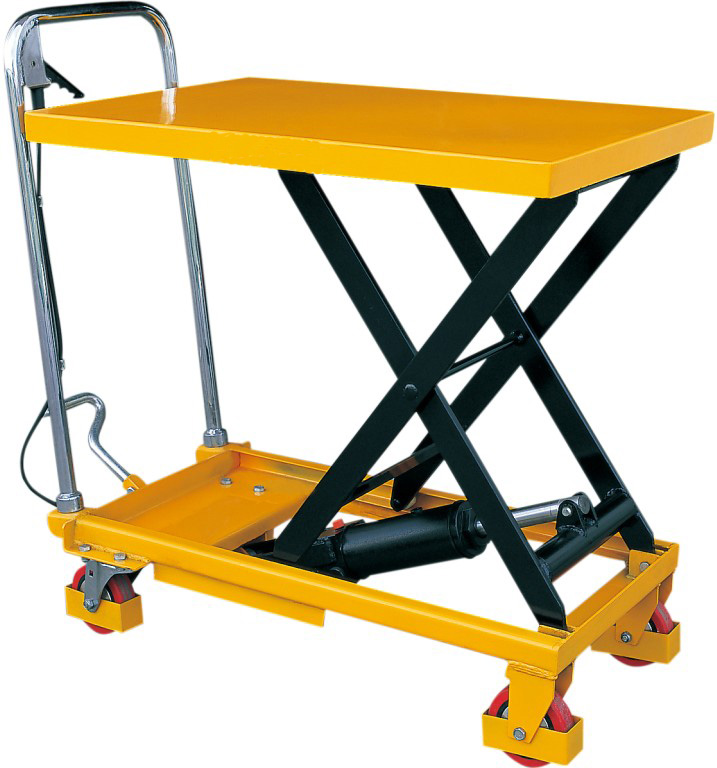

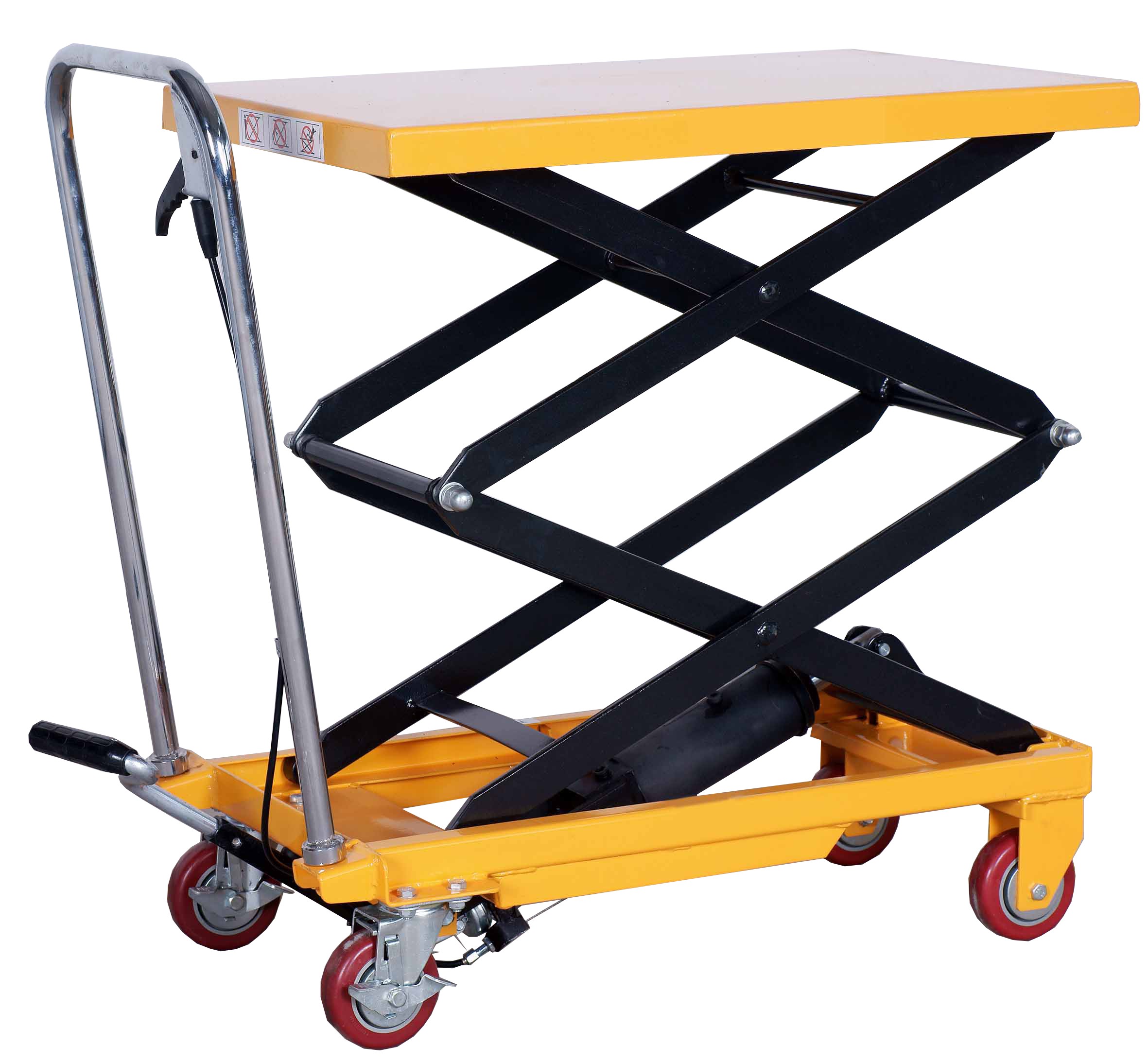

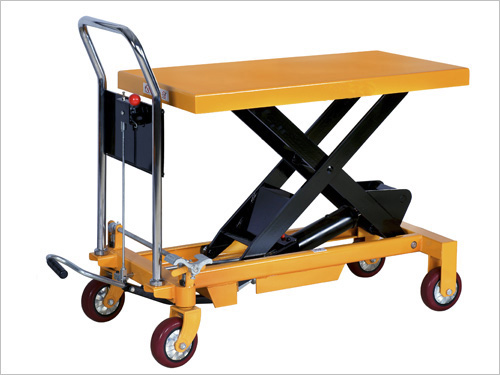

Manual lift table
手動平臺車 Manual Lift Table
|
型號Model No |
SPA201 |
SPA202 |
SPA204 |
SPA205 |
SPA206 |
|
|
載重Capacity |
Kg |
150 |
300 |
500 |
750 |
1000 |
|
最小臺面高度Min.table height |
mm |
220 |
285/340 |
285/340 |
420 |
380 |
|
最大臺面高度Max table height |
mm |
720 |
880 |
880 |
990 |
990 |
|
臺面尺寸 Dimension of table |
mm |
700*450 |
815*500 |
850*500 |
1000*510 |
1016*510 |
|
腳輪 Caster wheel |
mm |
Φ100*25 |
Φ125*40 |
Φ125*40 |
Φ147*50 |
Φ127*50 |
|
凈重 Net weight |
Kg |
46 |
77 |
81 |
125 |
140 |
|
型號Model No |
SPA203 |
SPA207 |
|
|
載重Capacity |
Kg |
350 |
800 |
|
最小臺面高度Min.table height |
mm |
355 |
445 |
|
最大臺面高度Max table height |
mm |
1300 |
1500 |
|
臺面尺寸Dimension of table |
mm |
910*500 |
1220*610 |
|
腳輪Caster wheel |
mm |
Φ125*40 |
Φ127 |
|
凈重Net weight |
Kg |
105 |
195 |
|
Model No |
SPA208 |
SPA209 |
|
|
載重Capacity |
Kg |
500 |
1000 |
|
最小臺面高度Min.table height |
mm |
286 |
300 |
|
最大臺面高度Max table height |
mm |
915 |
1400 |
|
臺面尺寸Dimension of table |
mm |
1600*810 |
2035*750 |
|
腳輪Caster wheel |
mm |
Φ127 |
Φ180*50 |
|
凈重Net weight |
Kg |
154 |
198 |
